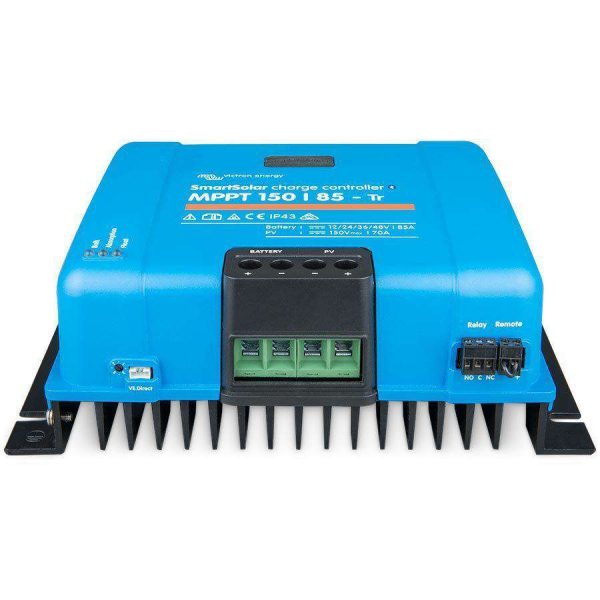

By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.

Features and Specifications:

• Ultra-fast Maximum Power Point Tracking (MPPT)
• Advanced Maximum Power Point Detection in case of partial shading conditions
• Outstanding conversion efficiency
• Flexible charge algorithm
• Internal temperature sensor
• Bluetooth Smart built-in: dongle not needed
• Programmable relay
• Optional: pluggable LCD display
• Battery voltage: 12, 24, 48 Volts DC (36VDC can be set up with software tool)
• Rated charge current: 85 Amps
• Max. PV short circuit current: 70 Amps
• Maximum PV open circuit voltage: 150 Volts absolute maximum, 145 Volts startup
• Maximum wire size: #2 AWG
• Weight: 9.92 lbs (4.5 kg)
• Dimensions (inches millimeters): 8.5 x 11.61 x 4.06 216 x 295 x 103 mm
• 5 year warranty

• Specifications Efficiency:

  • Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
  • Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points may be present on the powervoltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
  • Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%. Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
  • Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor Compensates absorption and float charge voltage for temperature.
  • Bluetooth Smart built-in: dongle not needed The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices. VE.Direct For a wired data connection to a Color Control panel, Venus GX, PC or other devices Remote on-off To connect for example to a VE.BUS BMS.
  • Programmable relay Can be programmed (a.o. with a smartphone) to trip on an alarm, or other events. Optional: pluggable LCD display Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.

  • As a Victron authorized dealer, we offer a 5 year limited factory warranty on this item.
